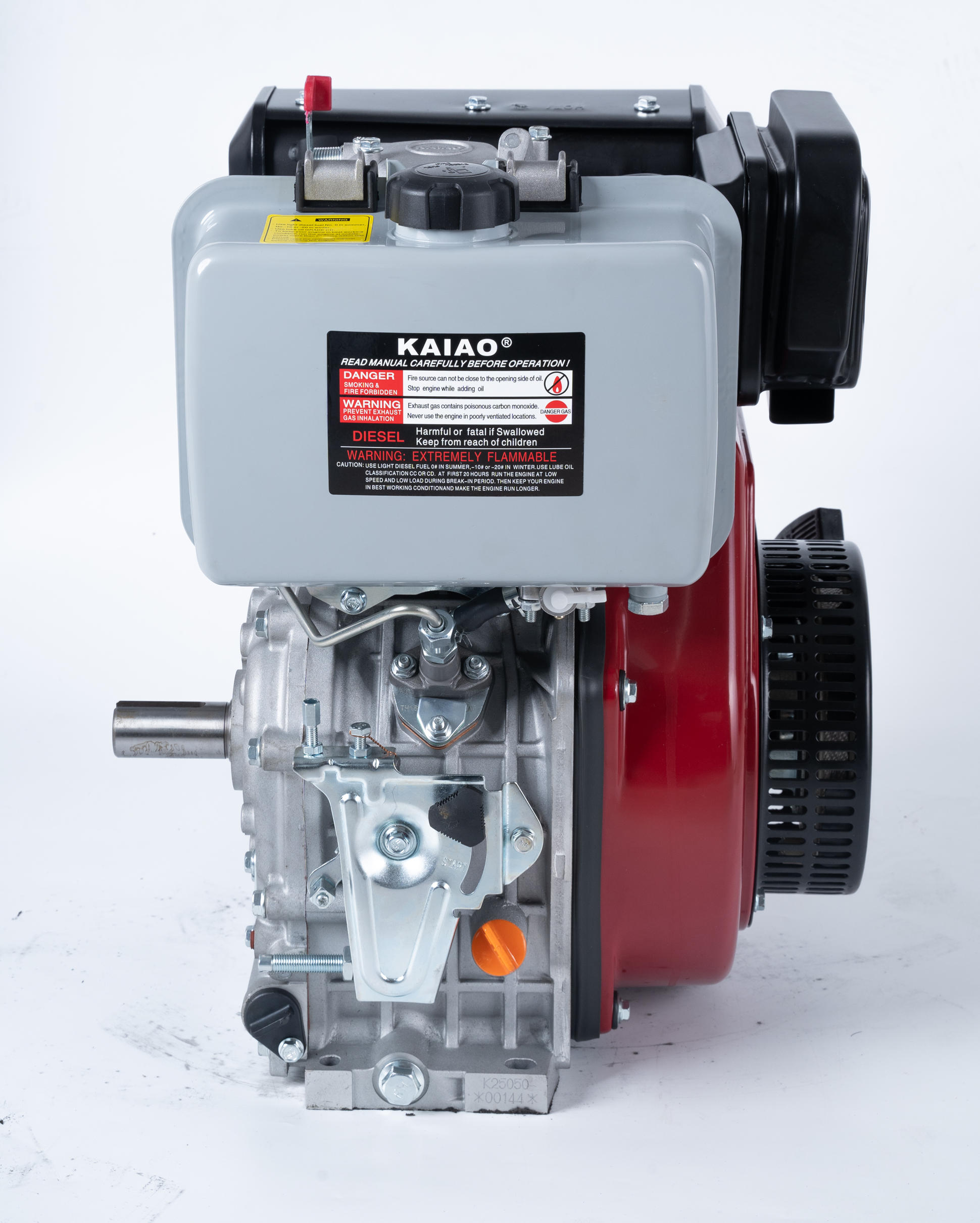

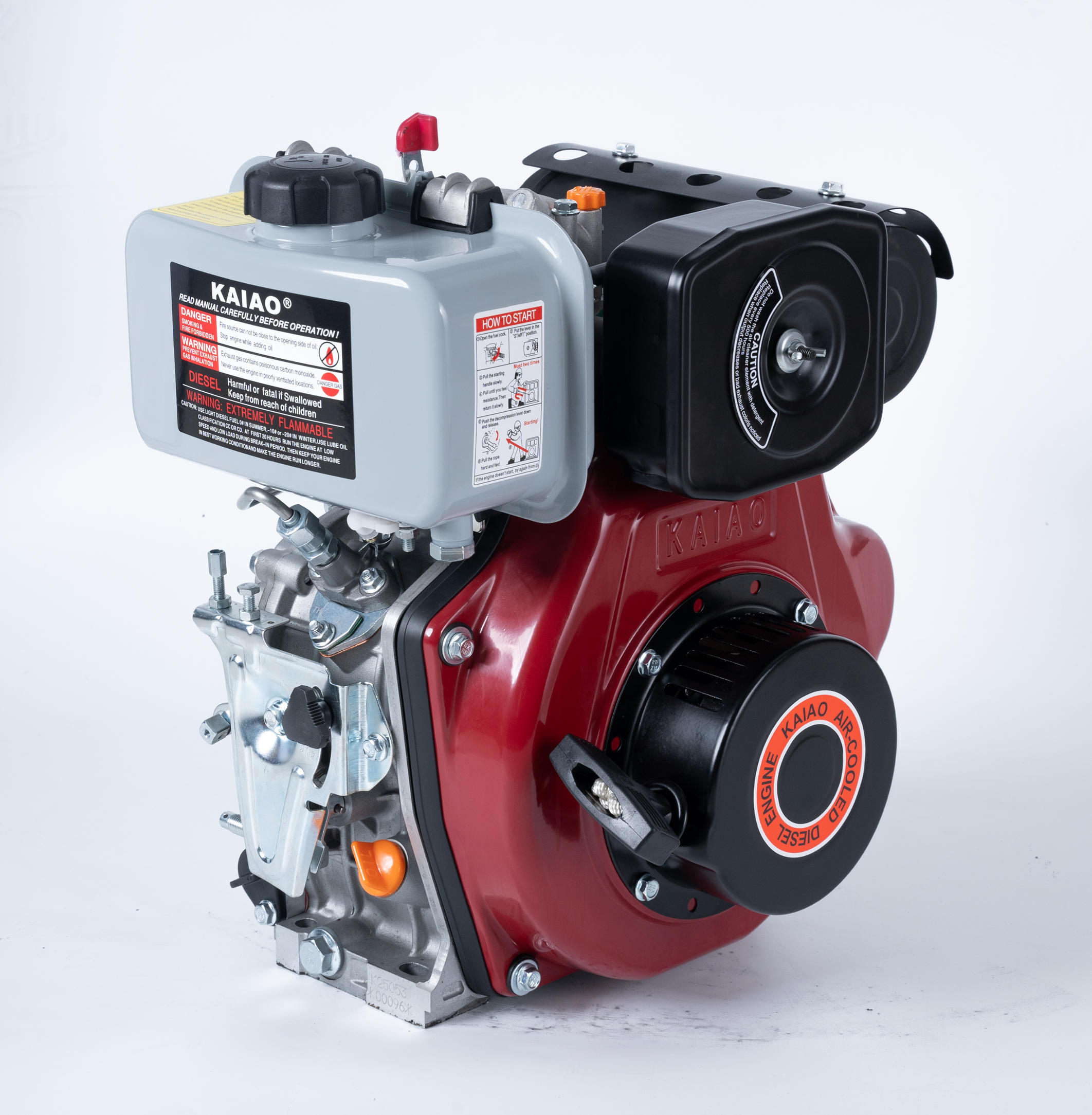

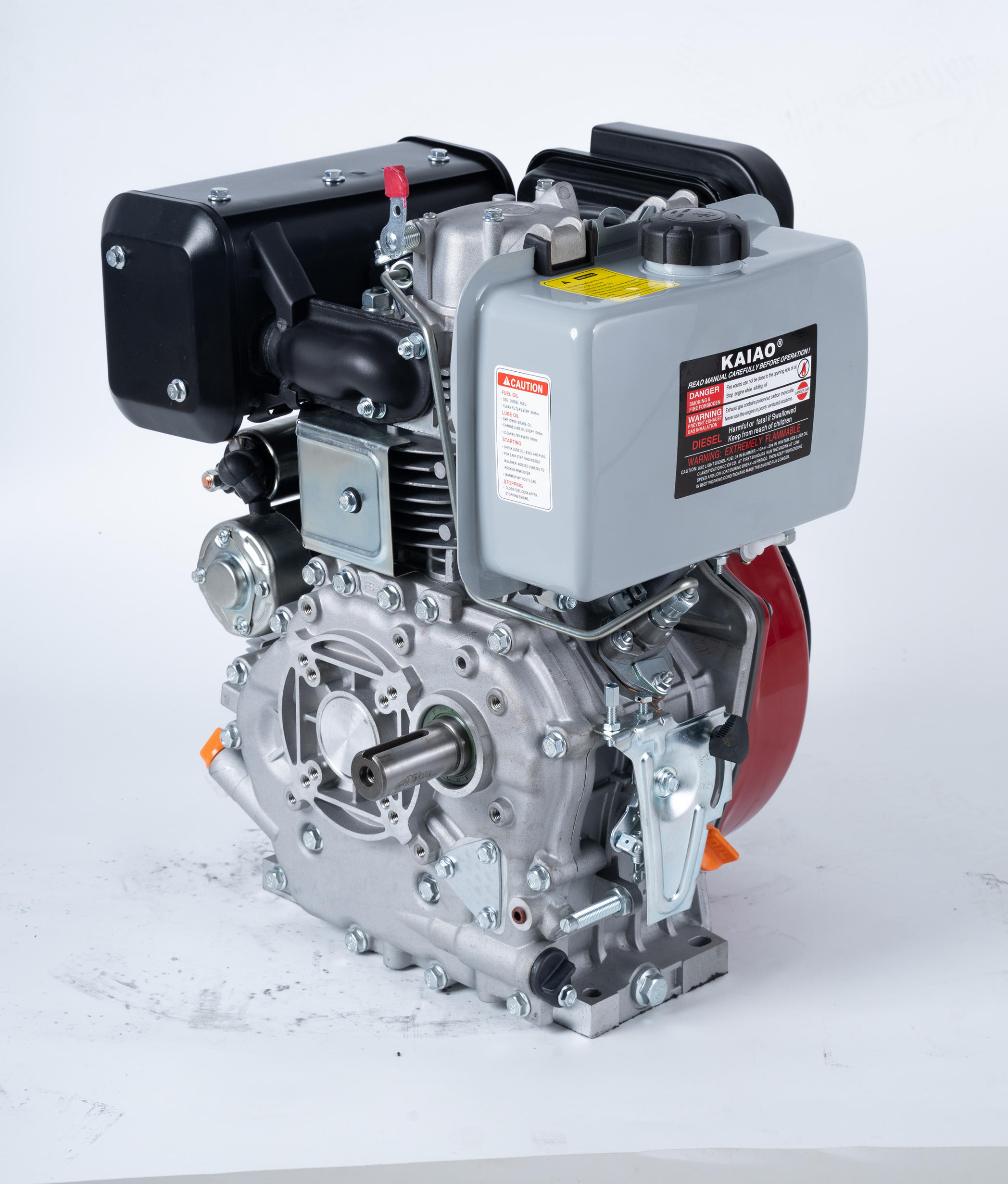

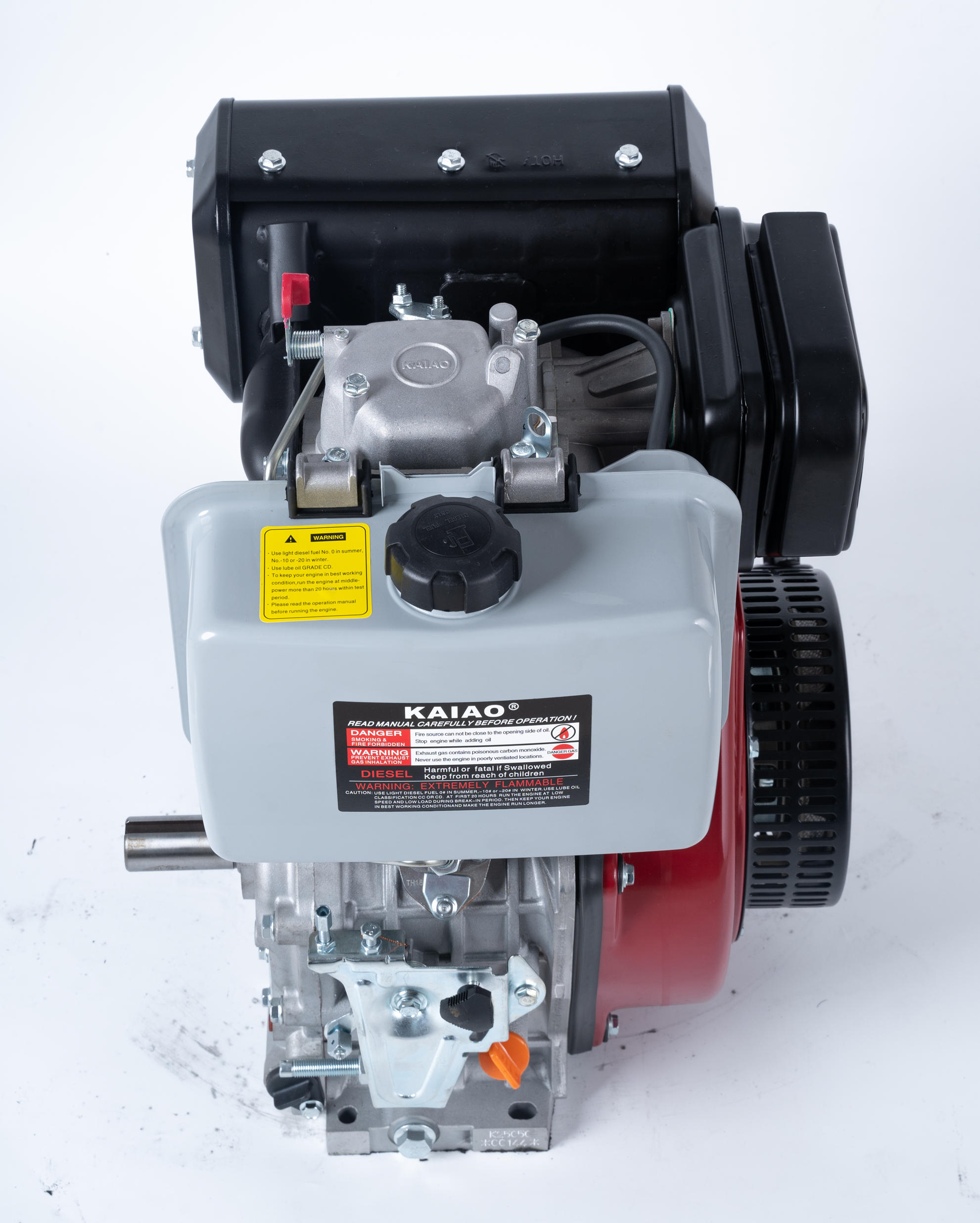

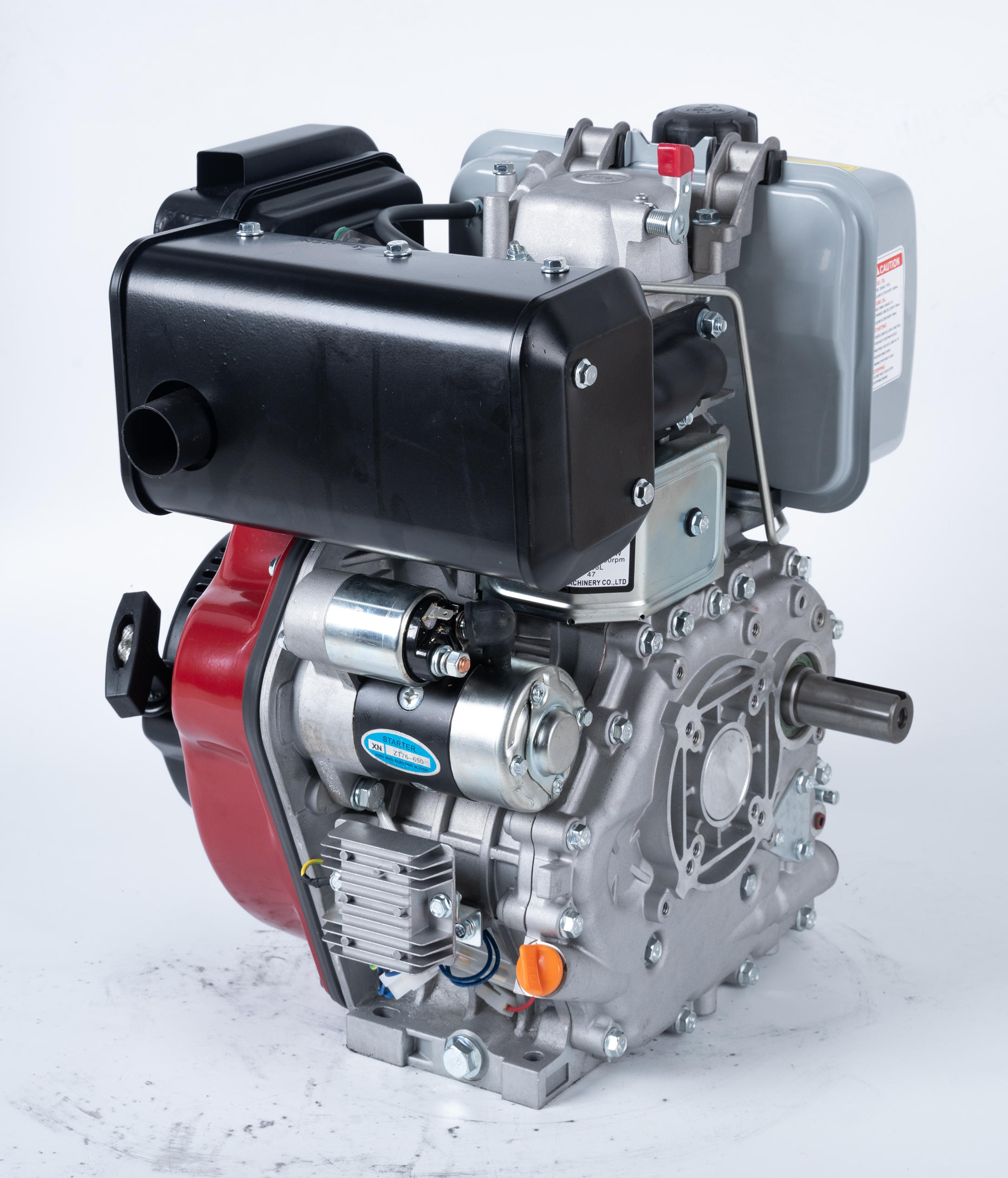

6Hp KA178F KAIAO AIR COOLED SINGLE CYLINDER DIESEL ENGINE
| Model | KA178F |
| Rated output(HP/rpm) | 5HP/3000rpm, 5.5HP/3600rpm |
| Rated output(KW/rpm) | 3.7KW/3000rpm 4KW/3600rpm |
| Engine type | Single-cylinder, vertical, four-stroke, air-cooled, direct injection |
| Cylinder Diameter*stroke(mm) | 78X62 |
| Piston displacement (L) | 0.296 |
| Compression ratio | 20 |
| Rated speed(rpm) | 3000/3600 |
| Max. no-load speed(r/min) | 108% of Rated rotary speed |
| Min. no-load speed(r/min) | 1300 |
| Lubrication system | Pressure splash Type |
| Engine starting system | Recoil starter or Electric starter |
| Output terminal rotation | AnticlockWise |
| Fuel oil model | Summer:0#,Winter:-10# |
| Fuel tank capacity (L) | 3.5 |
| Fuel consumption rate(g/kW.h) | 276.1/3000 285.6/3600 |
| Oil consumption rate(g/kW.h) | 4.08 |
| Oil grade | CD grade or SAE10W-30,15W-40 |
| Valve clearance(cold state) mm | 0.10-0.15 |
| Lube oil capacity (L) | 1.1 |
| Starting motor (V,kW) | 12V 0.8kW |
| Charging generator(V,A) | 12V 3A |
| Battery capacity(V,AH) | Above 12V-36AH |
| Dimension (L*W*H)(mm) | 480*435*520 |
| Net weight(kg) | 33 |
