| Quantity: | |
|---|---|
KDP40HS
KAIAO
| WUXI KAIAO POWER MACHINERY CO., LTD | |
| Contact:Woody Email: woody@wxkaiao.com | |

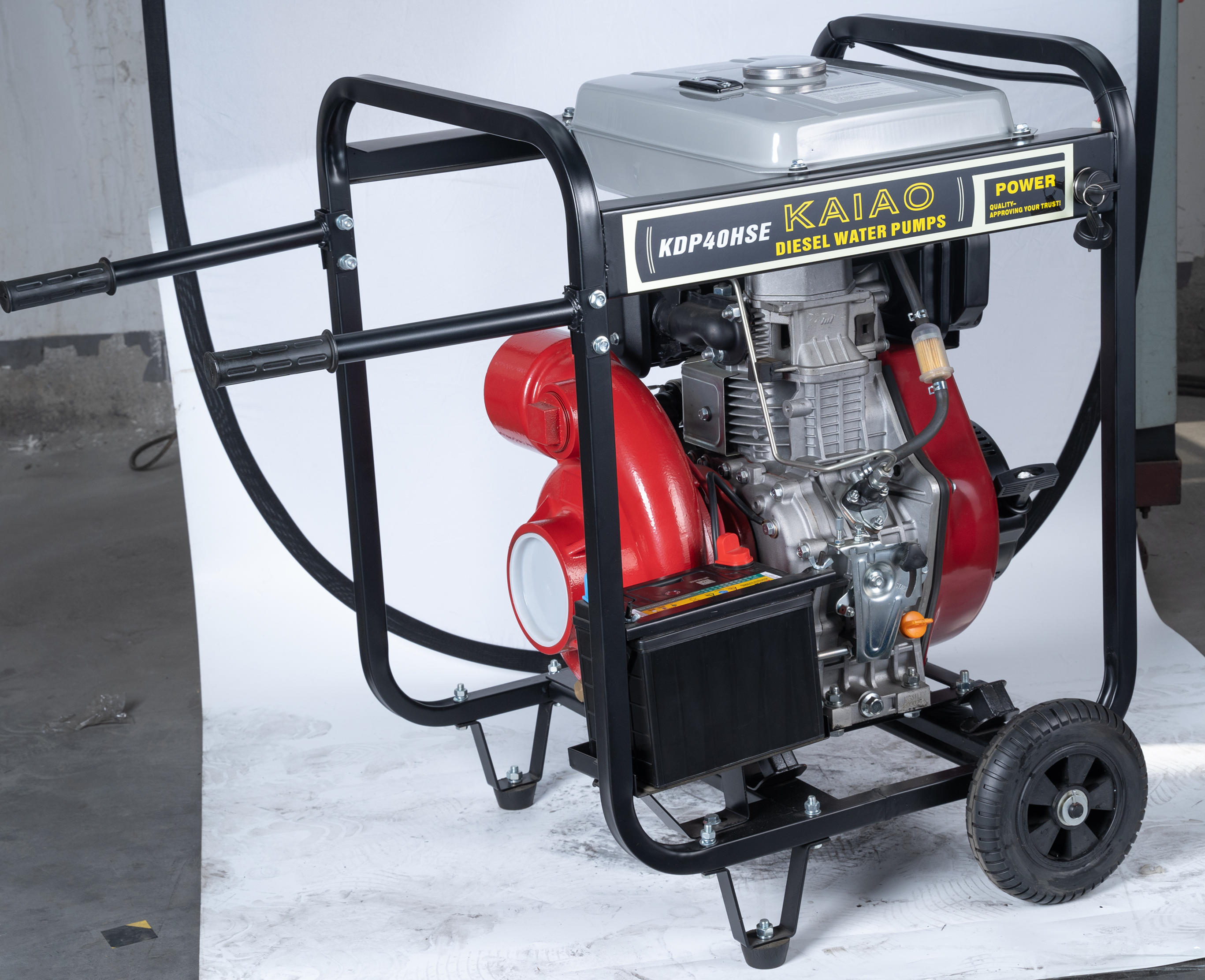

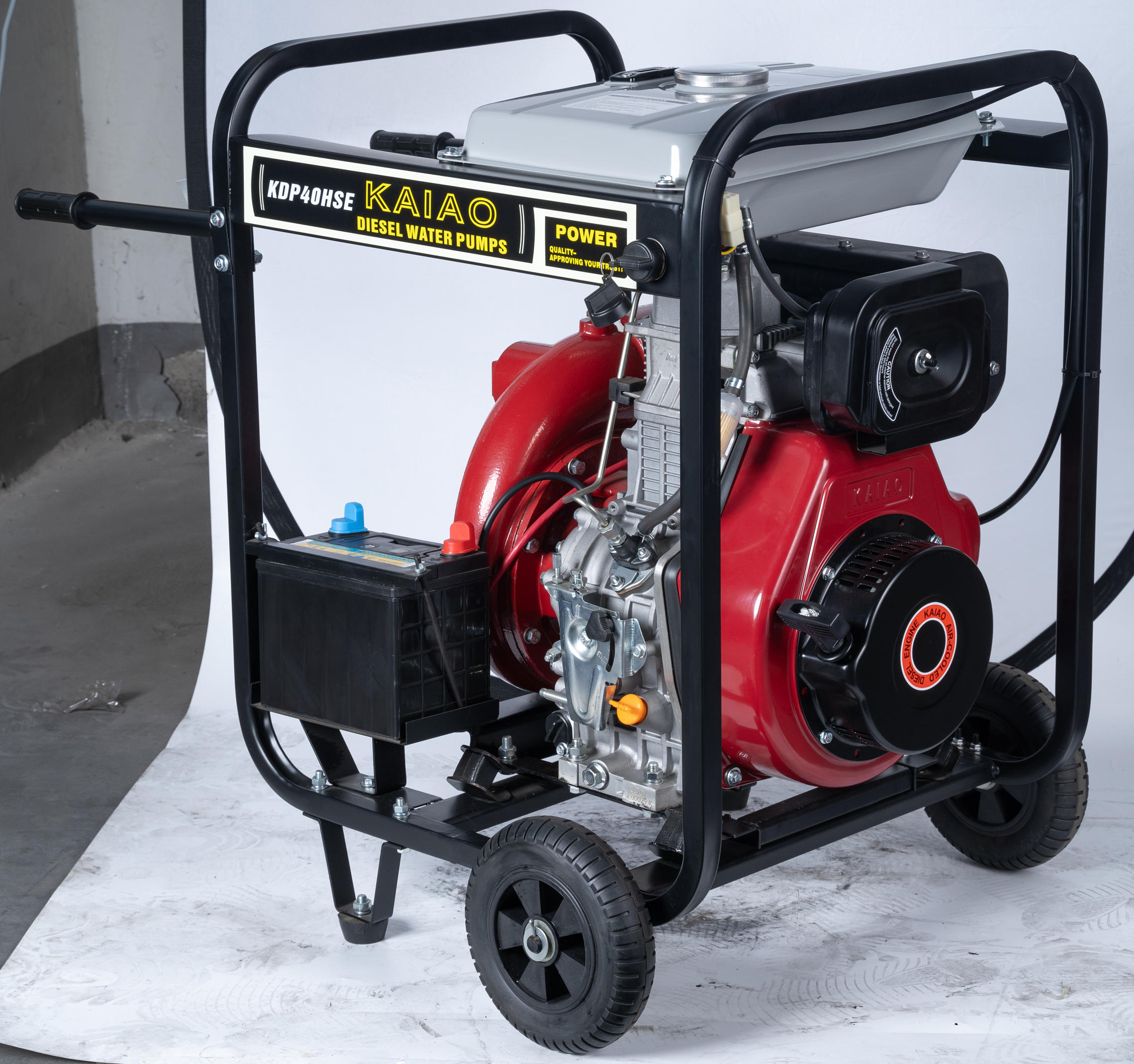

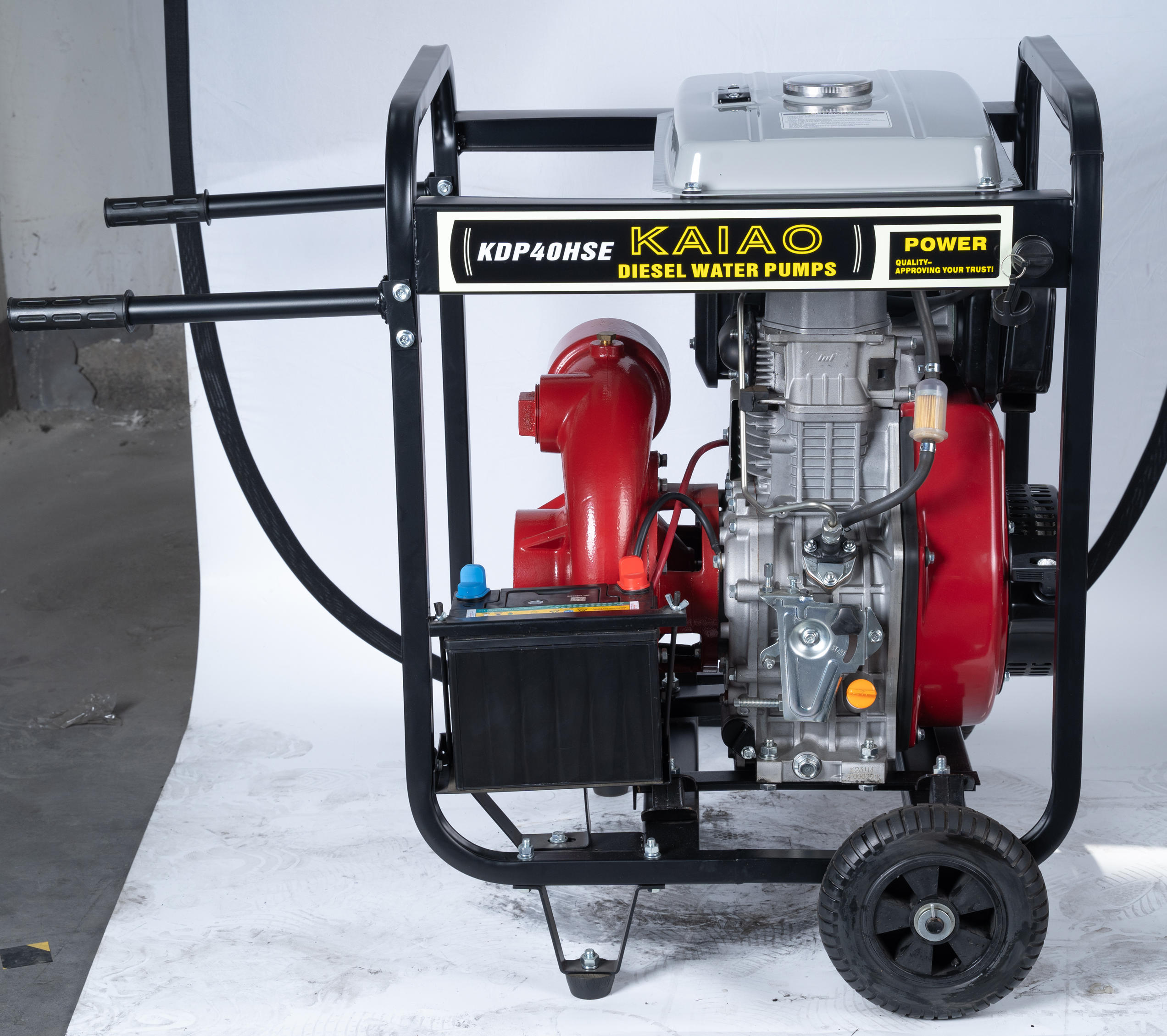

| HIGH PRESSURE DIESEL WATER PUMP CAST IRON | |
| Model | KDP40HS |
| Diameter(mm inch) | 100 (4" ) |
| Max. flow(m³/h) | 130 |
| Max. lift(m) | 40 |
| Max. suction lift(m) | 7 |
| Rotational speed(rpm) | 3600 |
| Pump material | CAST IRON |
| Impeller diamater(mm) | 150 |
| Engine model | KA192F |
| Engine type | Single-cylinder, vertical, four-stroke,air cooled |
| Max Power(Hp/rpm) | 12.5/3600 |
| Bore*stroke(mm) | 92x75 |
| Displacement (ml cc) | 498 |
| Starting system | Recoil starter ; Option: E type Electric starter,with or without battery |
| Pack dimension (L*W*H mm) | 690×510×630 |
| Net Weight(KGS) | 85 |
| WUXI KAIAO POWER MACHINERY CO., LTD | |
| Contact:Woody Email: woody@wxkaiao.com | |
| HIGH PRESSURE DIESEL WATER PUMP CAST IRON | |
| Model | KDP40HS |
| Diameter(mm inch) | 100 (4" ) |
| Max. flow(m³/h) | 130 |
| Max. lift(m) | 40 |
| Max. suction lift(m) | 7 |
| Rotational speed(rpm) | 3600 |
| Pump material | CAST IRON |
| Impeller diamater(mm) | 150 |
| Engine model | KA192F |
| Engine type | Single-cylinder, vertical, four-stroke,air cooled |
| Max Power(Hp/rpm) | 12.5/3600 |
| Bore*stroke(mm) | 92x75 |
| Displacement (ml cc) | 498 |
| Starting system | Recoil starter ; Option: E type Electric starter,with or without battery |
| Pack dimension (L*W*H mm) | 690×510×630 |
| Net Weight(KGS) | 85 |
