KDP40
KAIAO
WUXI KAIAO POWER MACHINERY CO., LTD | |

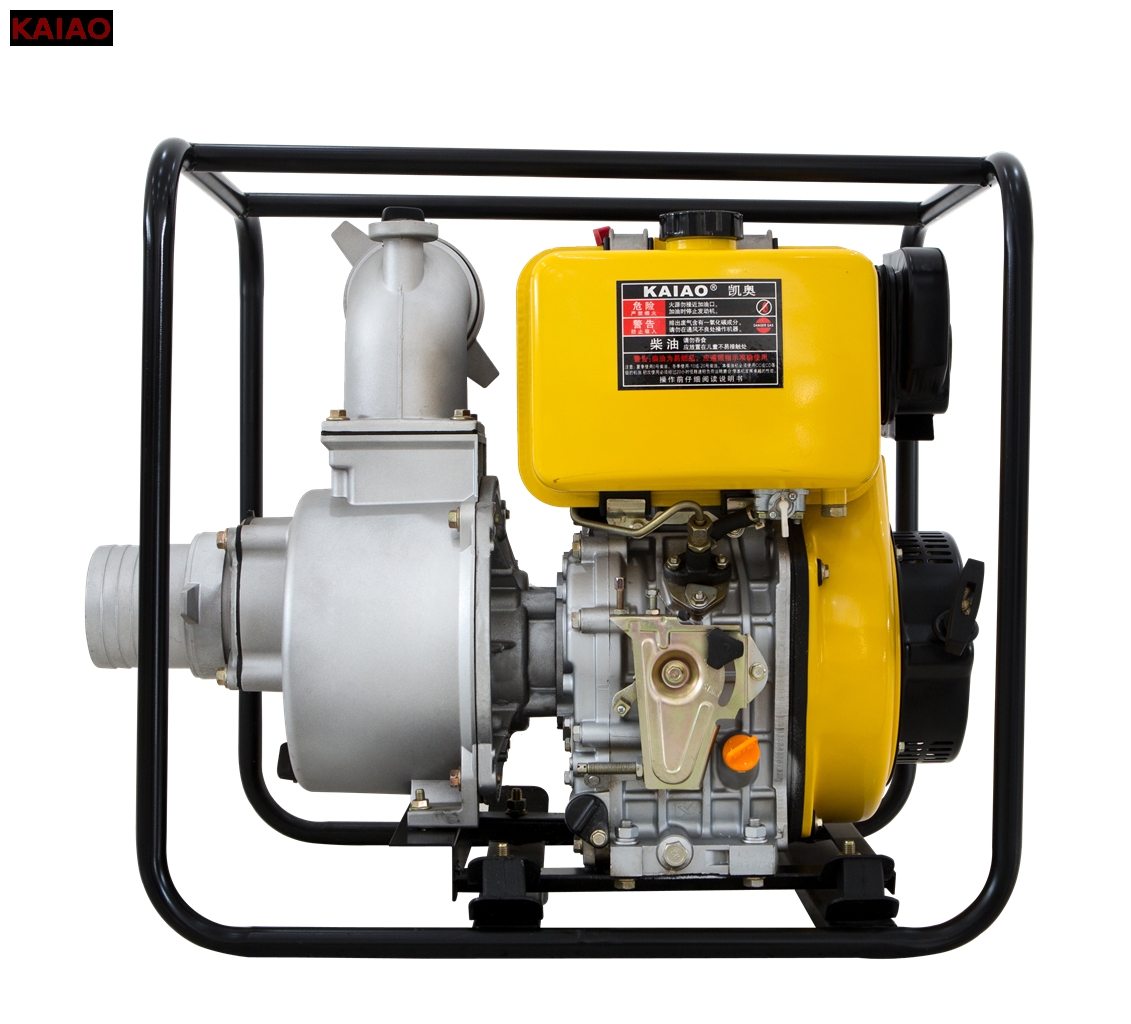

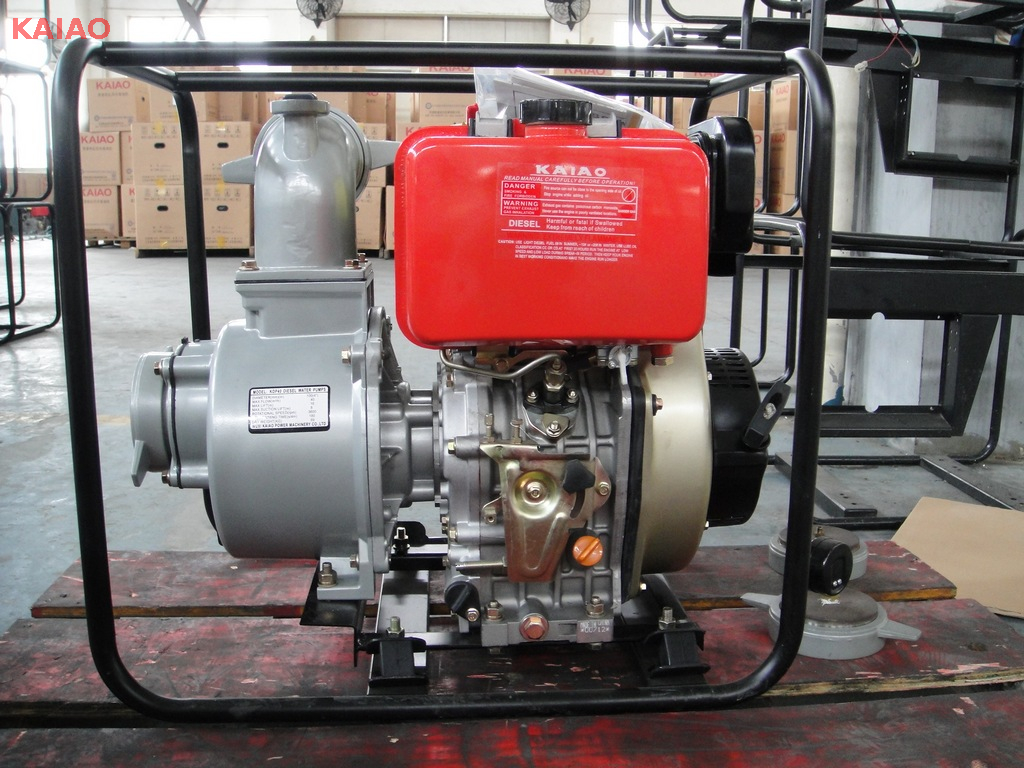

Diesel Engine Water Pump | |
Diesel engine driven self priming centrifugal water pump | |
Model | KDP40 |
Diameter(mm) (inch) | 100 (4" ) |
Max. flow(m3/h) | 40 |
Rated total head(m) | 16 |
Max. suction lift(m) | 8 |
Rotational speed(rpm) | 3600 |
Self-priming time(s/4m) | 180 |
Pump shaft | Steel |

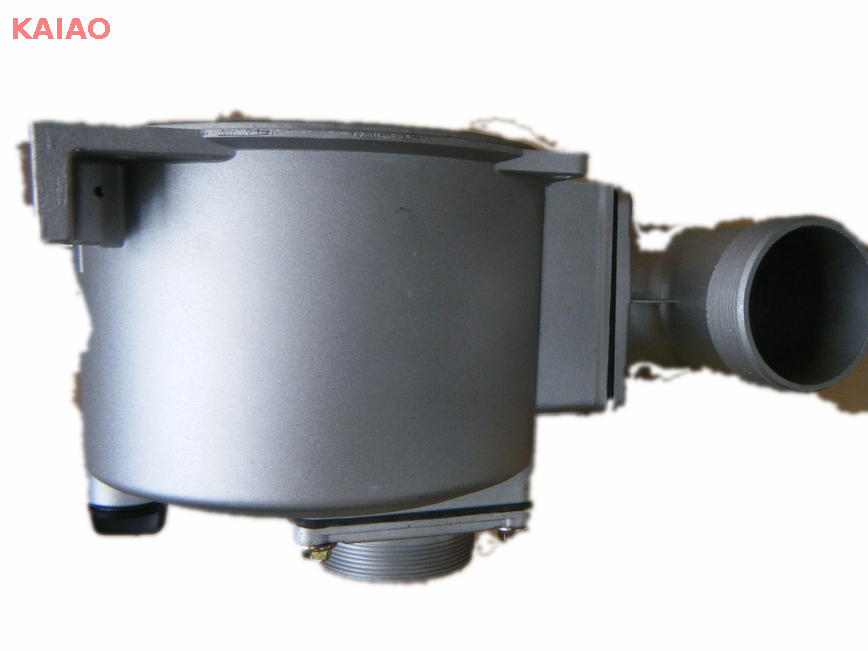

Pump housing | aluminum |
Impeller | cast iron |
connection type | direct |
Engine model | KA186F |
Engine type | Single-cylinder, vertical, four-stroke,air cooled |
Bore*stroke(mm) | 86*70 |
Displacement (L) | 0.406 |
Rate Power (KW) | 6.3 |
Fuel consumption rate(g.kW/h) | 281 |
Compression ratio | 19 |
Lubrication system | Pressure splash Type |
Engine starting system | Recoil starter |
Fuel oil model | Summer:0#,Winter:-10# |
Lube oil model | SAE10W-30 (above CD grade) |
Lube oil capacity (L) | 1.65 |
Fuel tank capacity (L) | 5.5 |
Dimension (L*W*H)(mm) | 690*510*635 |
Net weight(kg) | 69 |
Gross weight(kg) | 72 |
WUXI KAIAO POWER MACHINERY CO., LTD | |
Diesel Engine Water Pump | |
Diesel engine driven self priming centrifugal water pump | |
Model | KDP40 |
Diameter(mm) (inch) | 100 (4" ) |
Max. flow(m3/h) | 40 |
Rated total head(m) | 16 |
Max. suction lift(m) | 8 |
Rotational speed(rpm) | 3600 |
Self-priming time(s/4m) | 180 |
Pump shaft | Steel |
Pump housing | aluminum |
Impeller | cast iron |
connection type | direct |
Engine model | KA186F |
Engine type | Single-cylinder, vertical, four-stroke,air cooled |
Bore*stroke(mm) | 86*70 |
Displacement (L) | 0.406 |
Rate Power (KW) | 6.3 |
Fuel consumption rate(g.kW/h) | 281 |
Compression ratio | 19 |
Lubrication system | Pressure splash Type |
Engine starting system | Recoil starter |
Fuel oil model | Summer:0#,Winter:-10# |
Lube oil model | SAE10W-30 (above CD grade) |
Lube oil capacity (L) | 1.65 |
Fuel tank capacity (L) | 5.5 |
Dimension (L*W*H)(mm) | 690*510*635 |
Net weight(kg) | 69 |
Gross weight(kg) | 72 |
