KDP30HS
KAIAO
WUXI KAIAO POWER MACHINERY CO., LTD | |

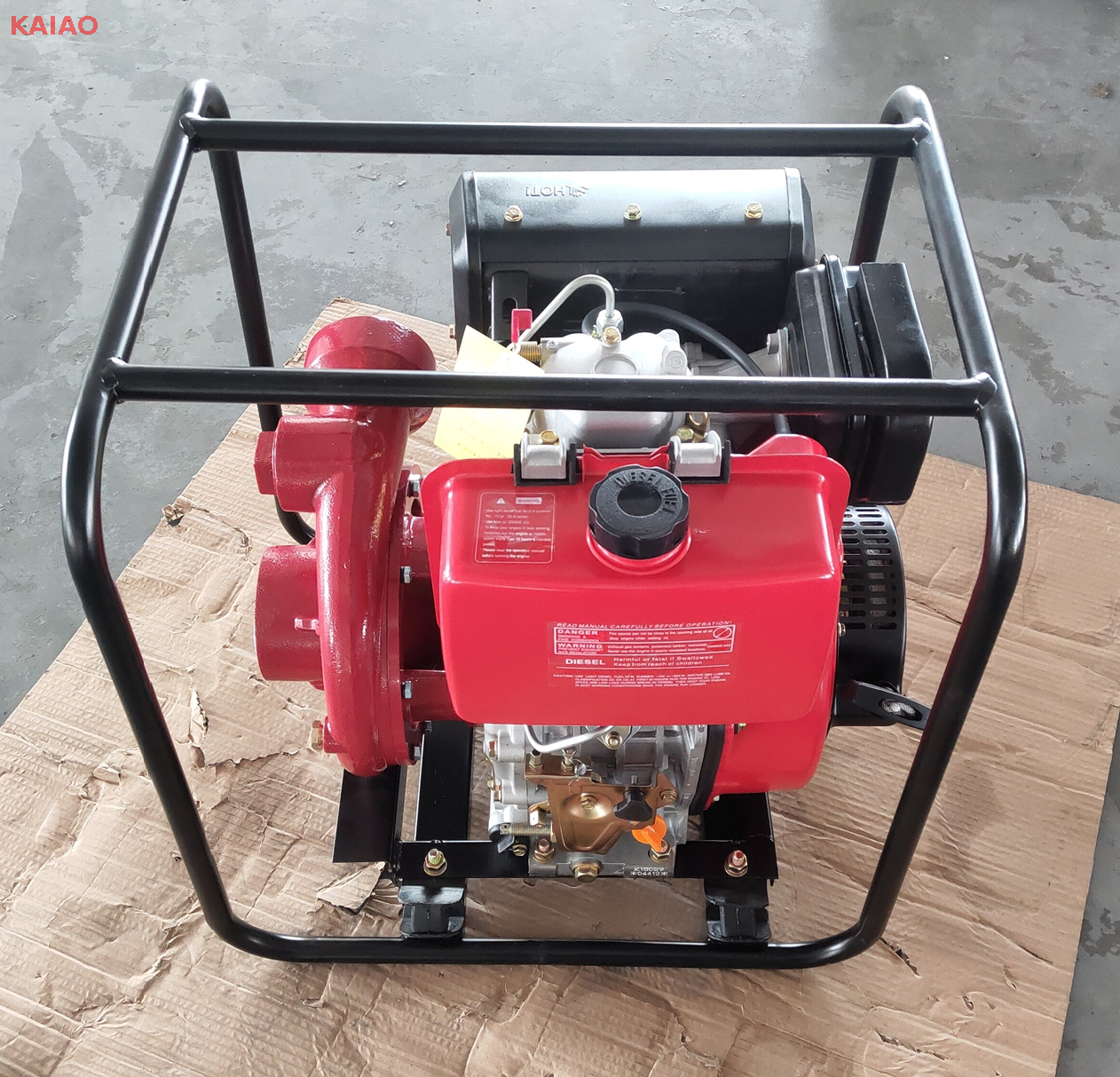

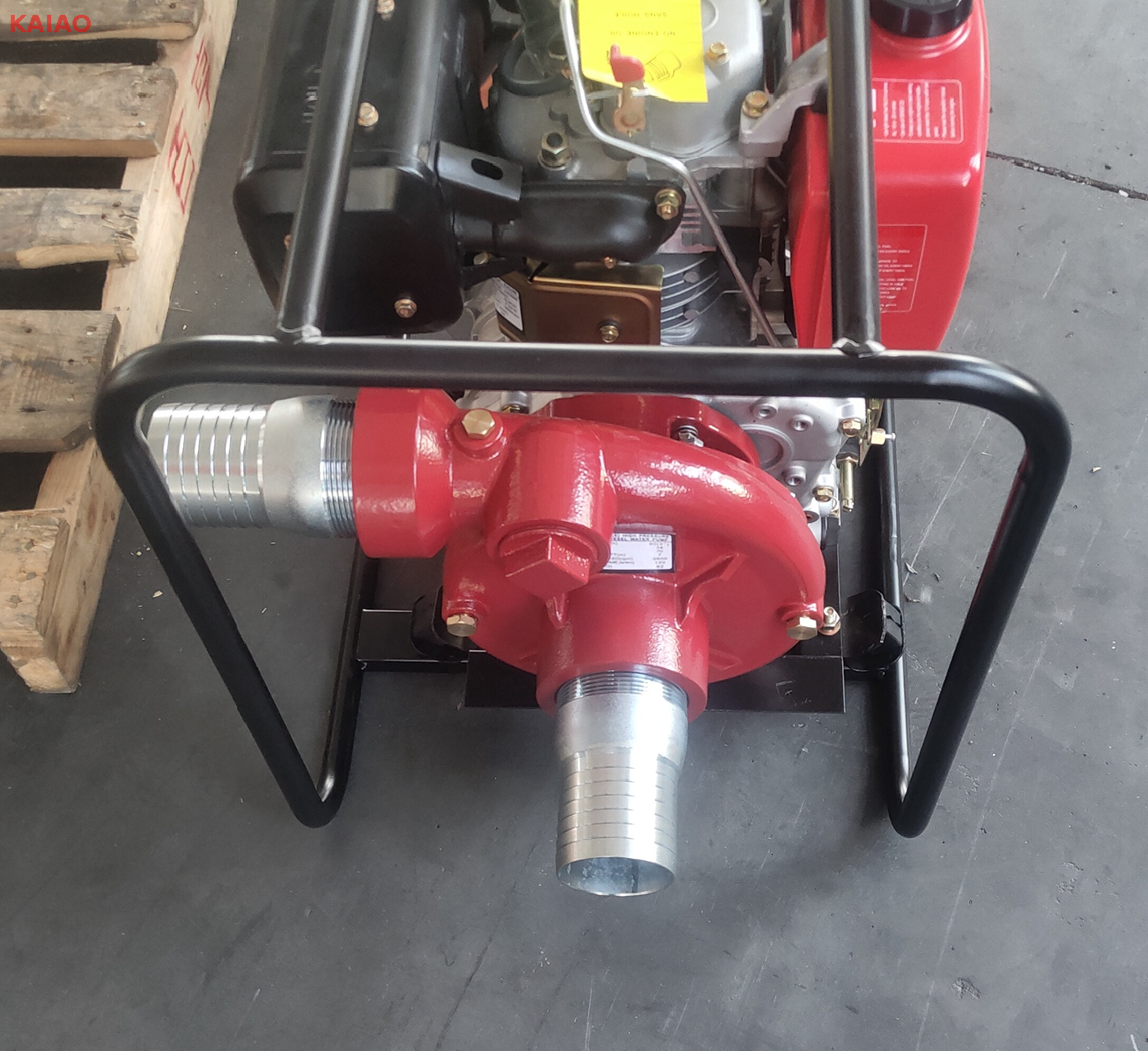

3"INCH IRON High Pressure Water Pump | |
Model | KDP30HS |
Diameter(mm) (in) | 80(3" ) |
Max. flow(m3/h) | 42 |
Max. lift(m) | 75 |
Max. suction lift(m) | 6 |
Rotational speed(rpm) | 3600 |
Self-priming time(s/4m) | 40 |
Pump shaft | Steel |
Pump housing | cast iron |
Impeller | cast iron |
Engine model | KA186FA |
Engine type | Single-cylinder, vertical, four-stroke,air cooled |
Bore*stroke(mm) | 86*72 |
Displacement (L) | 0.418 |
Power (kW) | 6.35/3600 |
Fuel consumption rate(g.kW/h) | 281 |
Compression ratio | 19 |
Lubrication system | Pressure splash Type |
Engine starting system | Recoil starter |
Fuel oil model | Summer:0#,Winter:-10# |
Lube oil model | SAE10W-30 (above CD grade) |
Lube oil capacity (L) | 1.1 |
Fuel tank capacity (L) | 5.5 |
Dimension (L*W*H)(mm) | 605*525*625 |
Net weight(Kg) | 68 |
Gross weigt(Kg) | 70 |
