| Quantity: | |
|---|---|

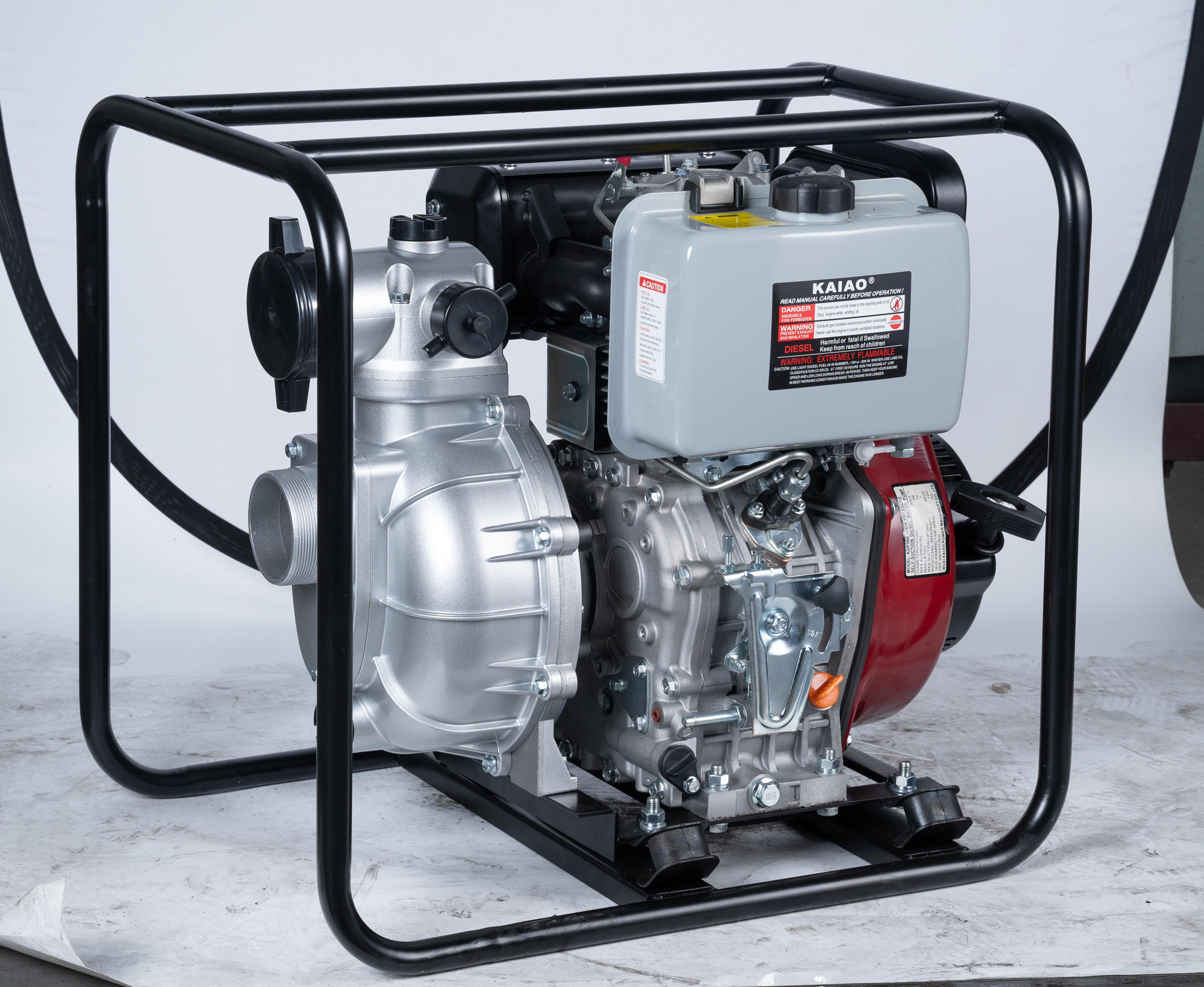

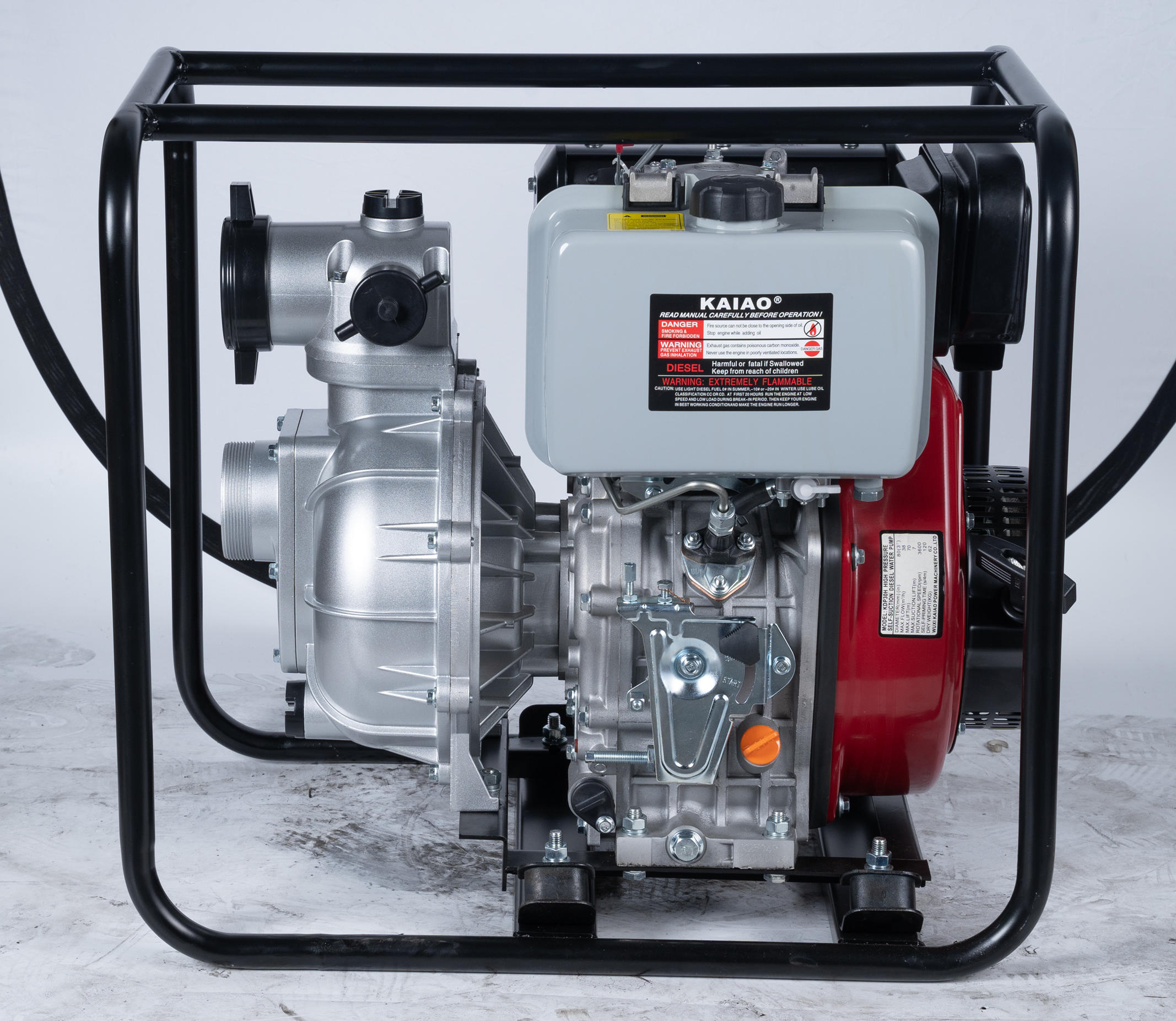

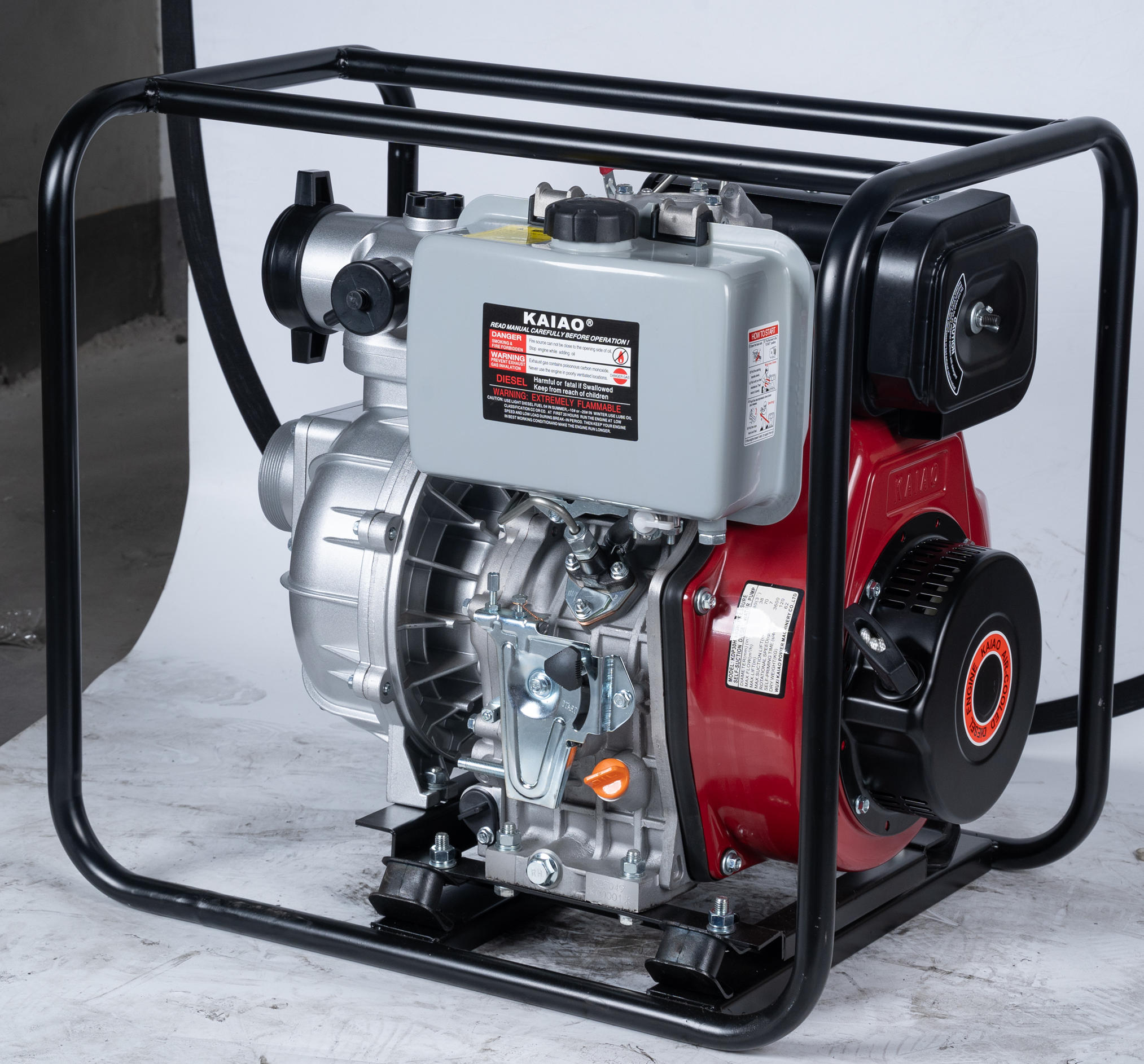

KDP30H
KAIAO
| WUXI KAIAO POWER MACHINERY CO., LTD | |
| Contact:Woody Email: woody@wxkaiao.com | |
| HIGH PRESSURE DIESEL WATER PUMP | |
| Model | KDP30H |
| Diameter(mm inch) | 80(3" ) |
| Max. flow(m³/h) | 32 |
| Max. lift(m) | 102 |
| Max. suction lift(m) | 7 |
| Rotational speed(rpm) | 3600 |
| Pump material | Aluminum |
| Self-priming time(s/4m) | ≤160S |
| Engine model | KA186FA |
| Engine type | Single-cylinder, vertical, four-stroke,air cooled |
| Max Power(Hp/rpm) | 9.38/3600 |
| Bore*stroke(mm) | 86x72 |
| Displacement (ml cc) | 418 |
| Starting system | Recoil starter ; Option: E type Electric starter,with or without battery |
| Pack dimension (L*W*H mm) | 690×510×630 |
| Net Weight(KGS) | 60 |
| WUXI KAIAO POWER MACHINERY CO., LTD | |
| Contact:Woody Email: woody@wxkaiao.com | |
| HIGH PRESSURE DIESEL WATER PUMP | |
| Model | KDP30H |
| Diameter(mm inch) | 80(3" ) |
| Max. flow(m³/h) | 32 |
| Max. lift(m) | 102 |
| Max. suction lift(m) | 7 |
| Rotational speed(rpm) | 3600 |
| Pump material | Aluminum |
| Self-priming time(s/4m) | ≤160S |
| Engine model | KA186FA |
| Engine type | Single-cylinder, vertical, four-stroke,air cooled |
| Max Power(Hp/rpm) | 9.38/3600 |
| Bore*stroke(mm) | 86x72 |
| Displacement (ml cc) | 418 |
| Starting system | Recoil starter ; Option: E type Electric starter,with or without battery |
| Pack dimension (L*W*H mm) | 690×510×630 |
| Net Weight(KGS) | 60 |
