KDE6500EW
KAIAO

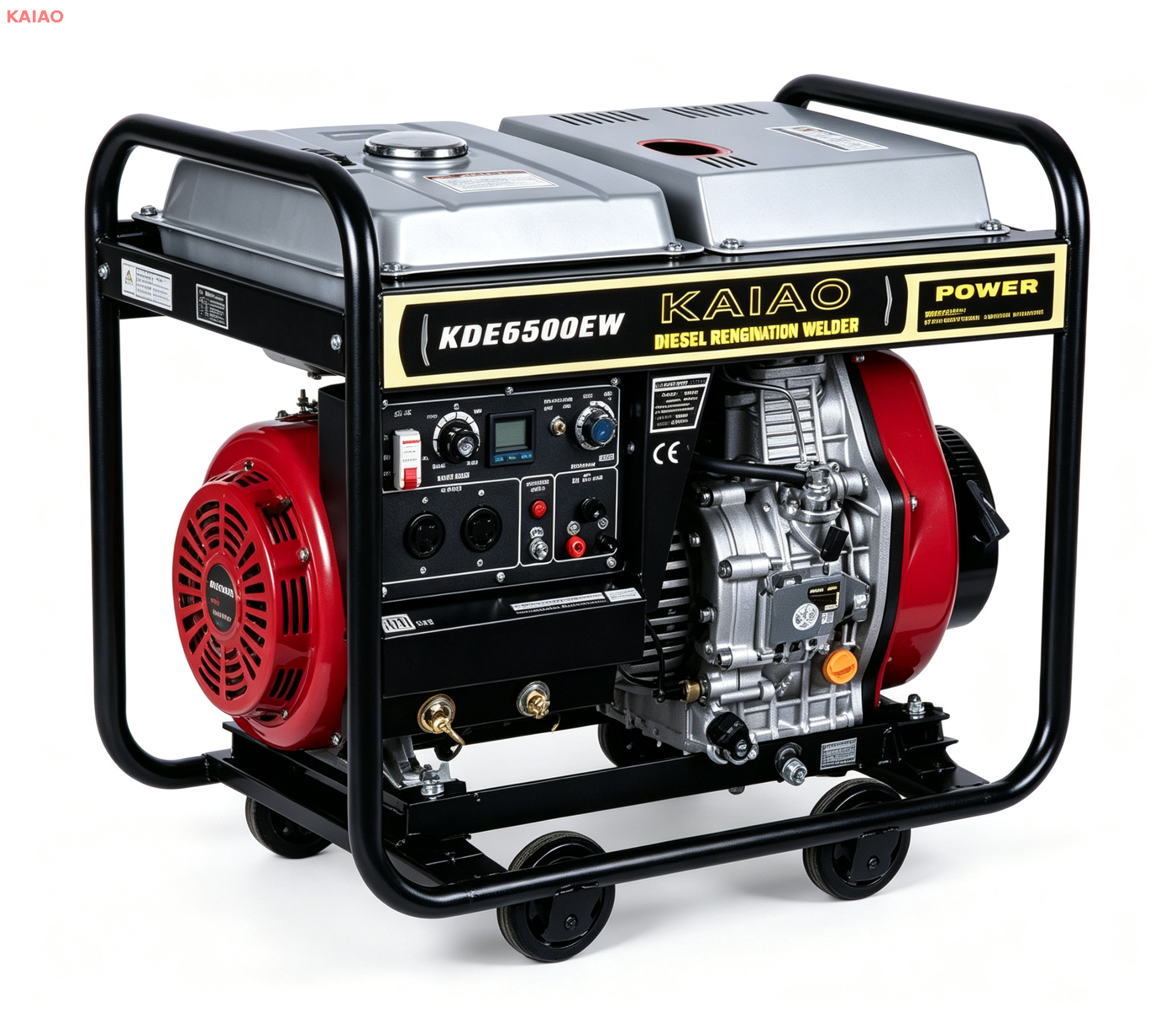

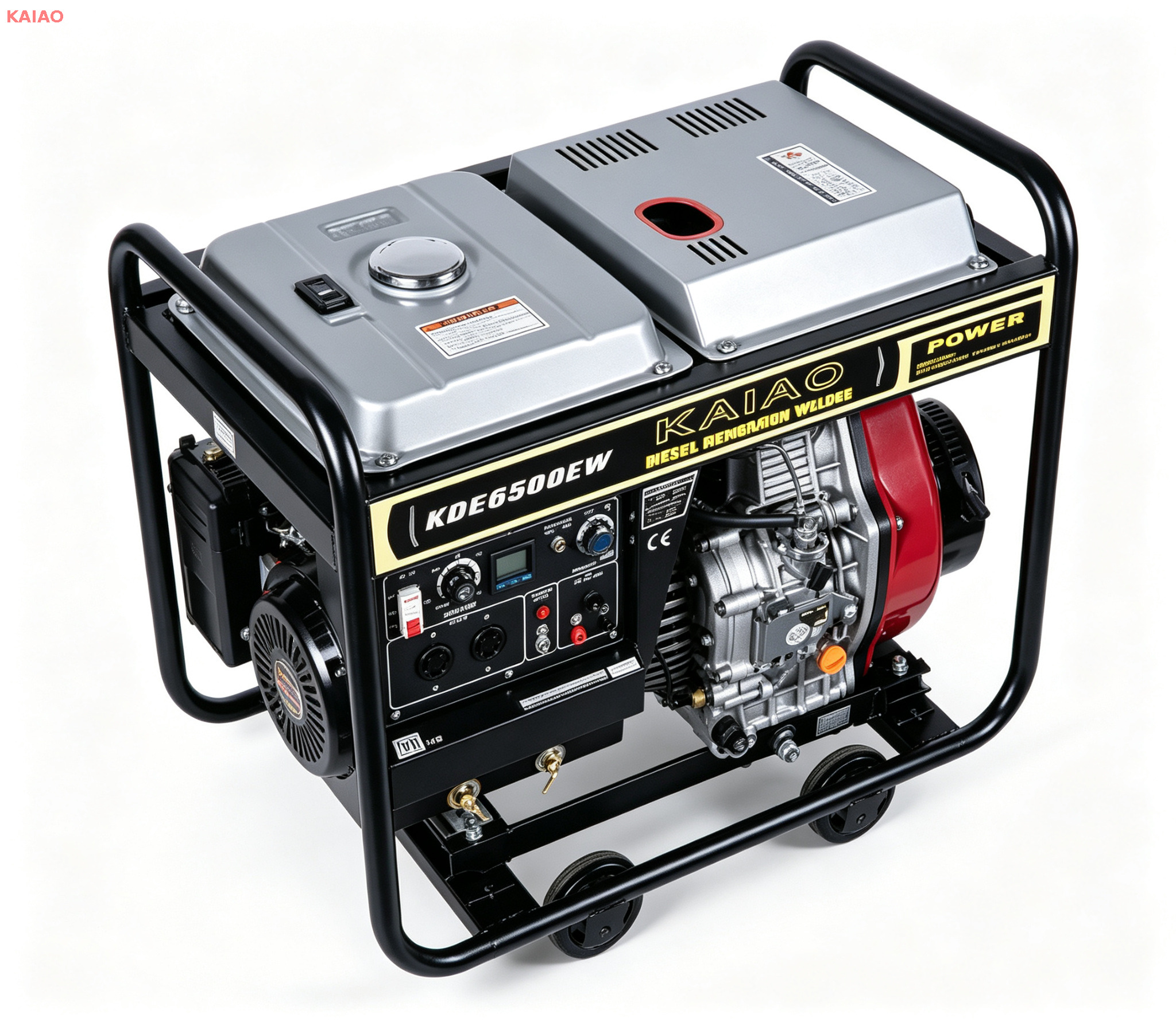

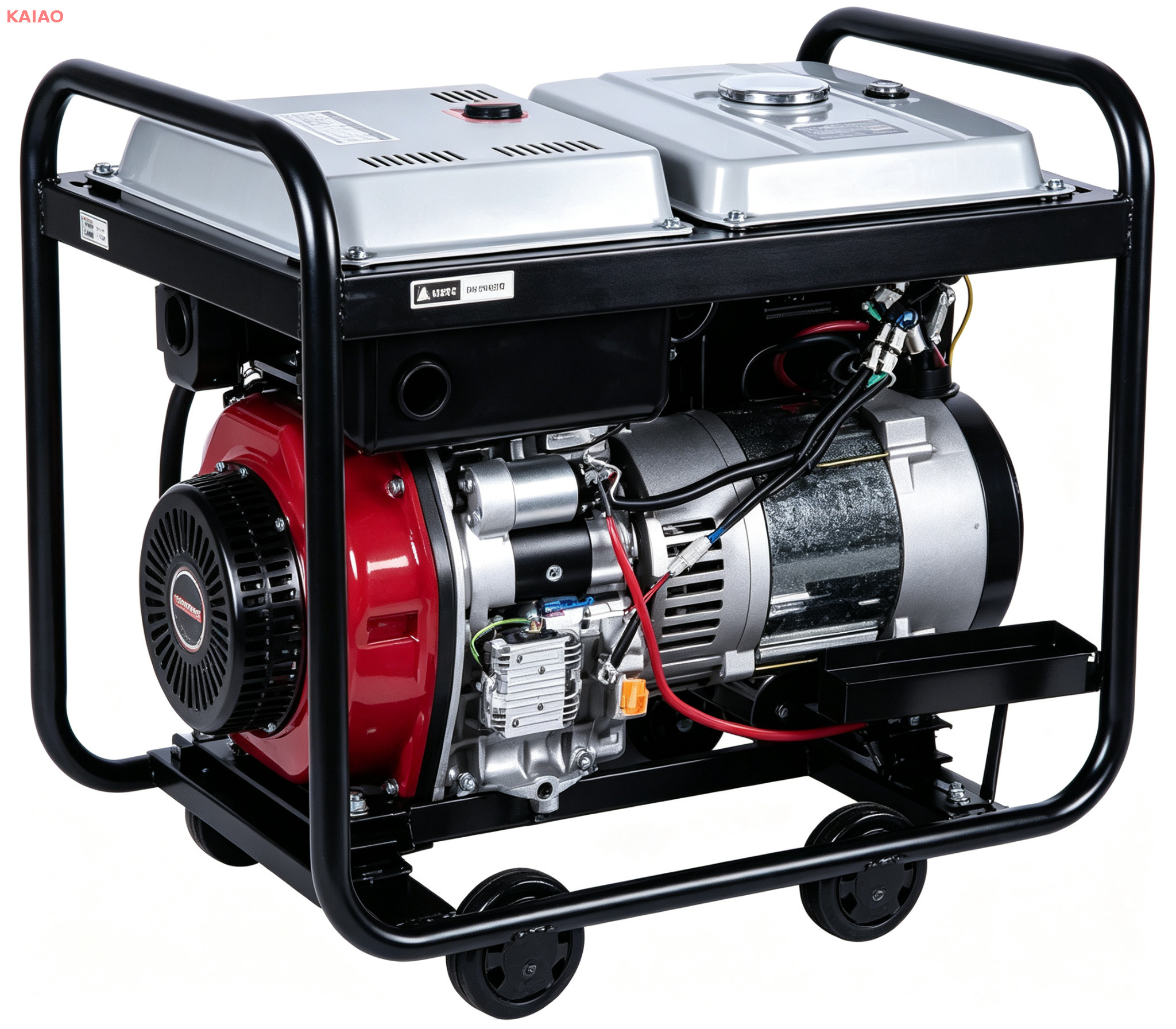

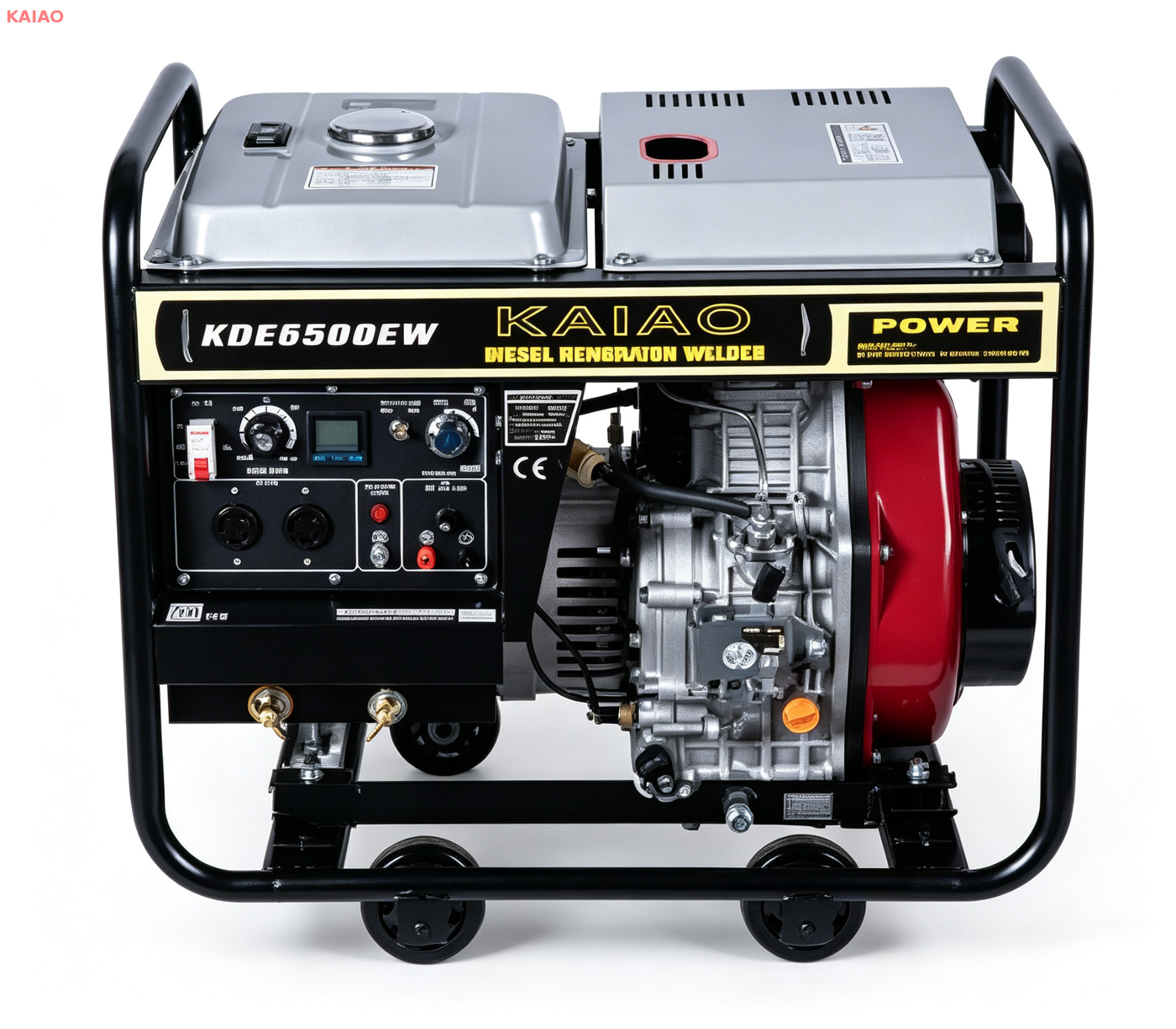

DUAL-USE DIESEL WELDING GENERATOR SET | |||||||||||
Model | KDE6500EW | ||||||||||
Frequency（Hz） | 50 | 60 | |||||||||
Rated welding DC A | 180 | ||||||||||
Welding Current Adjust Range DC A | 50-200 | ||||||||||
NO-Load Welding Voltage （V） | 50-65 | ||||||||||
Rated Welding Voltage | 25-30 | ||||||||||
Welding Load Continue Ration | 60% | ||||||||||
Rated Power（KW） | 2 | 2.2 | |||||||||
Voltage(V) | 230 | 240 | |||||||||
Current（A） | 8.7 | 9.2 | |||||||||
Phase | Single | ||||||||||
Starting system | Recoil start/Electric start | ||||||||||
Engine Model | KA186FAE | ||||||||||
Fuel tank Capacity（L）approx. | 12.5 | ||||||||||
Noise Level (7m) | 77dB | ||||||||||
Pack dimension (L*W*H mm) | 760*515*710 | ||||||||||
Net Weight(KGS) | 105 | ||||||||||
