KA173F
KAIAO

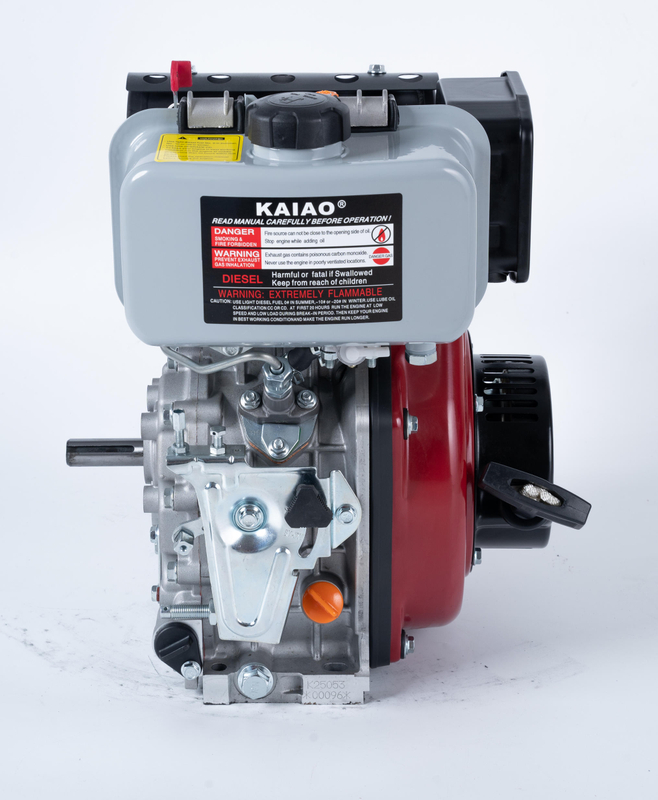

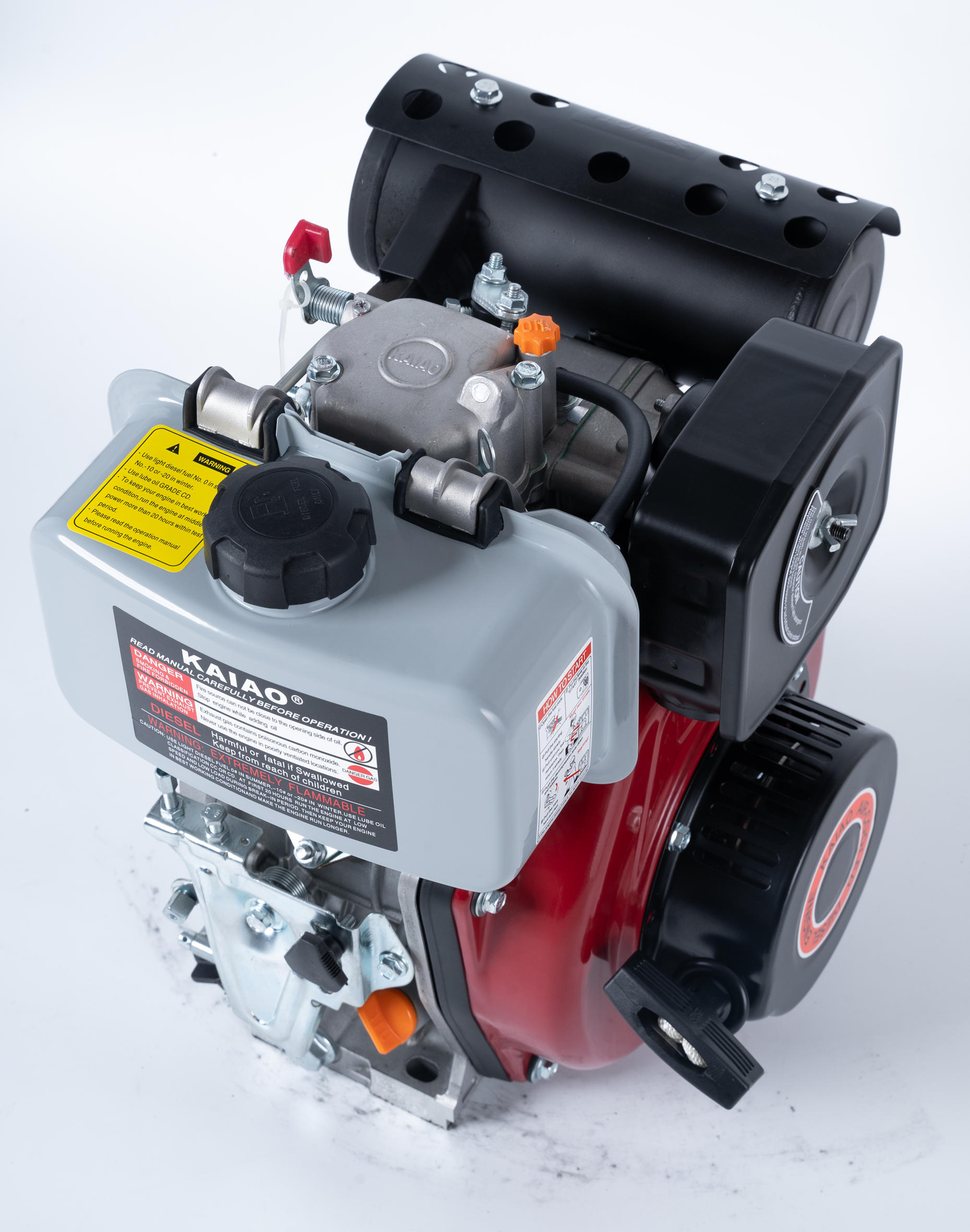

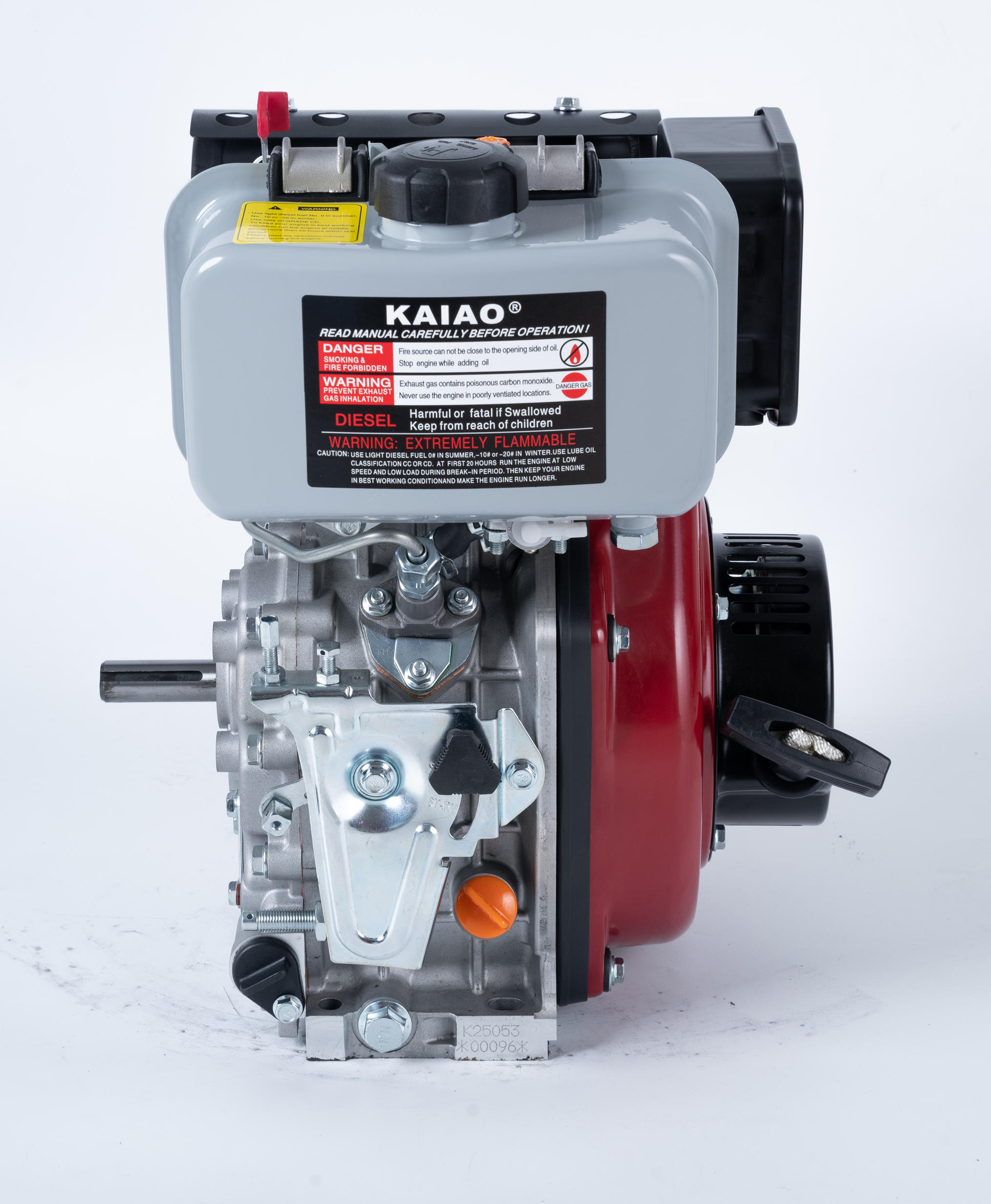

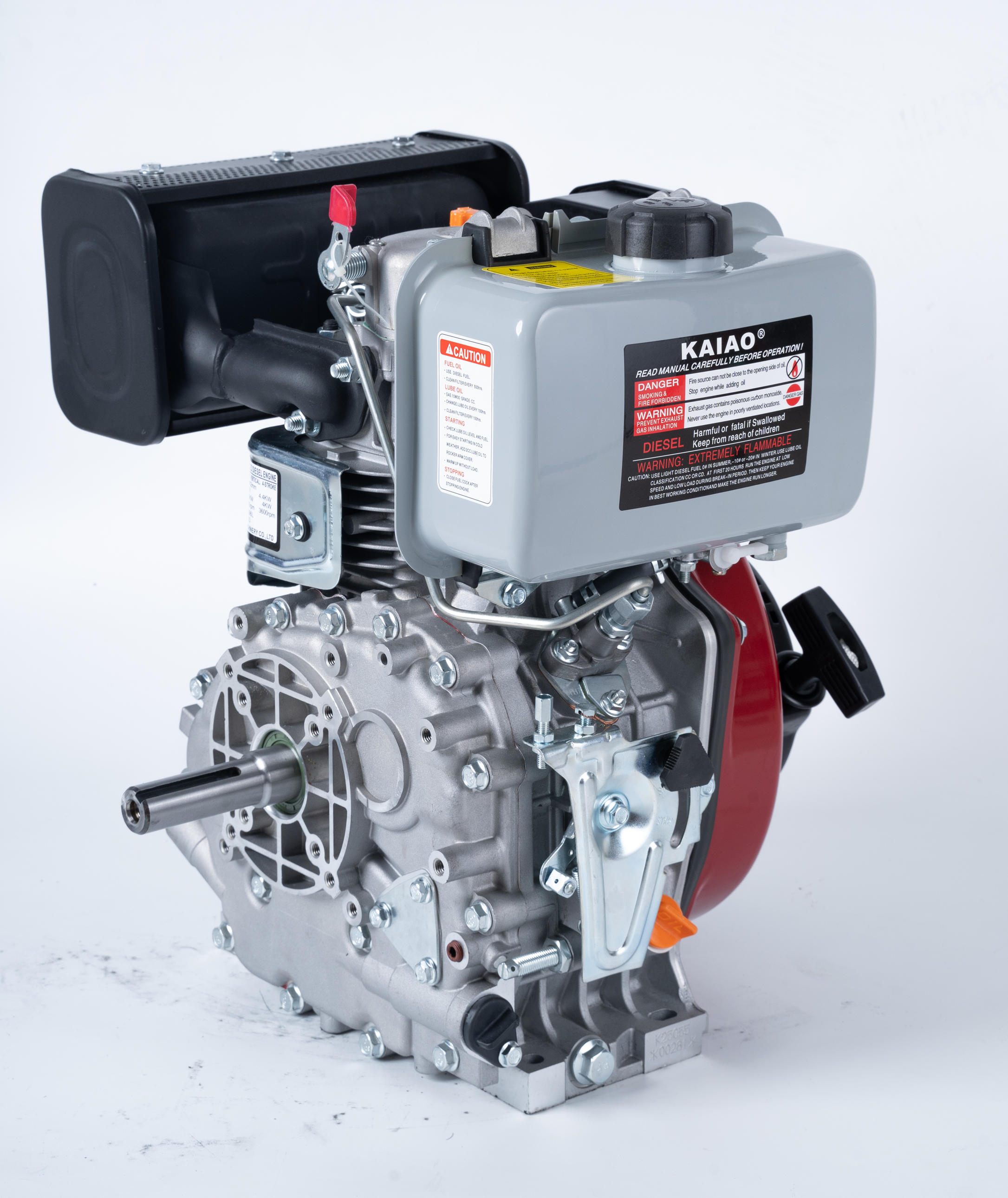

5Hp KA173F KAIAO AIR COOLED SINGLE CYLINDER DIESEL ENGINE
| 5Hp KAIAO DIESEL ENGINE | |
| Model | KA173F |
| Rated output(HP/rpm) | 4.65HP/3000rpm 5.45HP/3600rpm |
| Rated output(KW/rpm) | 3.45KW/3000rpm 4.05KW/3600rpm |
| Engine type | Single cylinder, vertical, four-stroke, air-cooled, direct injection |
| Diameter*stroke(mm) | 73X59 |
| Piston displacement (L) | 0.247 |
| Compression ratio | 20 |
| Rated speed(rpm) | 3000/3600 |
| Max. no-load speed(r/min) | 108% of Rated rotary speed |
| Min. no-load speed(r/min) | 1300 |
| Lubrication system | Pressure splash Type |
| Engine starting system | Recoil starter or Electric starter |
| Output terminal rotation | AnticlockWise |
| Fuel oil model | Summer:0#, Winter:-10# |
| Fuel tank capacity (L) | 2.5 |
| Oil consumption rate(g/kW.h) | 285.6 |
| Oil grade | CD grade or SAE10W-30,15W-40 |
| Valve clearance(cold state) mm | 0.10-0.15 |
| Lube oil capacity (L) | 0.75 |
| Starting motor (V,kW) | 12V 0.8kW |
| Charging generator(V,A) | 12V 3A |
| Battery capacity(V,AH) | 12V-24AH-36AH |
| Dimension (L*W*H)(mm) | 450*390*480 |
| Net weight(kg) | 28 |
