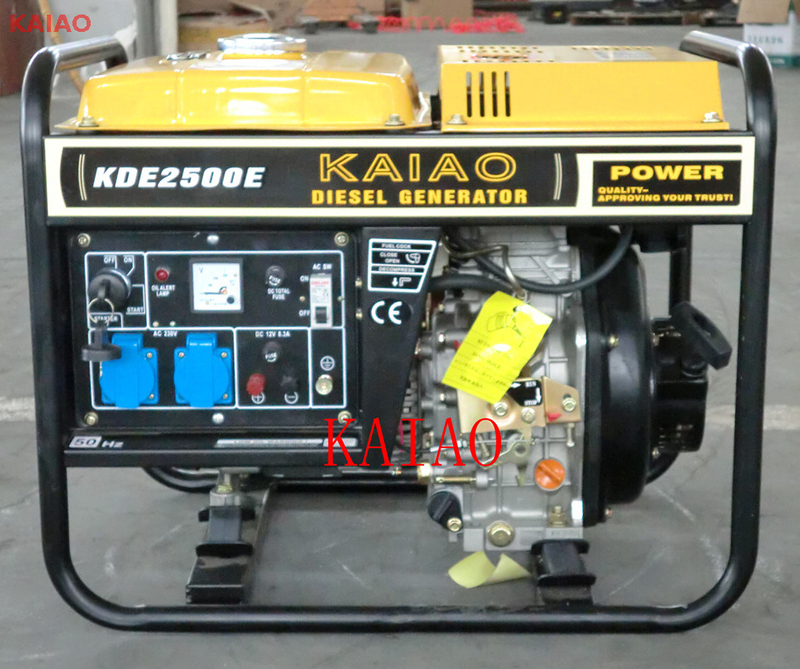

KDE2500E
KAIAO
| Model | KDE2500E | |
| Frequency (Hz) | 50 | 60 |
| Output power (KVA) | 1.7 | 2 |
| Max. Power(KVA) | 2 | 2.2 |
| Voltage (V) | 115/230 | 120/240 |
| Current (A) | 14.9/7.4 | 16.7/8.3 |
| Engine speed (r/min) | 3000 | 3600 |
| Phase | Single | |
| Power factor(cosφ) | 1 | |
| Excitation system | Self-excited constant voltage | |
| Noise level (7m) | DB (A): 77 | |
| Fuel tank capacity (L) | 12.5 | |
| Structure | Open-frame | |
| Panel | Ordinary | |
| Outputsocket | Two | |
| Output terminal post | No | |
| DC12V output | Terminal post | |
| Engine Model | KA173FG | |
| Bore*stroke (mm) | 73 *55 | |
| Displacement (L) | 0.247 | |
| Power (KW) | 3.45/3000 | 4.05/3600 |
| Fuel consumption rate (g. KW/h) | ≤280 | ≤288 |
| Compression ratio | 20 | |
| Lubrication system | Spring | |
| Engine starting system | Electric starter | |
| Diesel oil model | Summer: 0#, winter: -10# | |
| Lube oil model | SAE10W-30 (above CD grade) | |
| Lube oil capacity (L) | 0.75 | |
| Battery capacity(V-AH) | 12V-36Ah | |
| Net weight KG | 60 | |
| Dimension(L*W*H) | 680×530×590 | |
